Product Overview

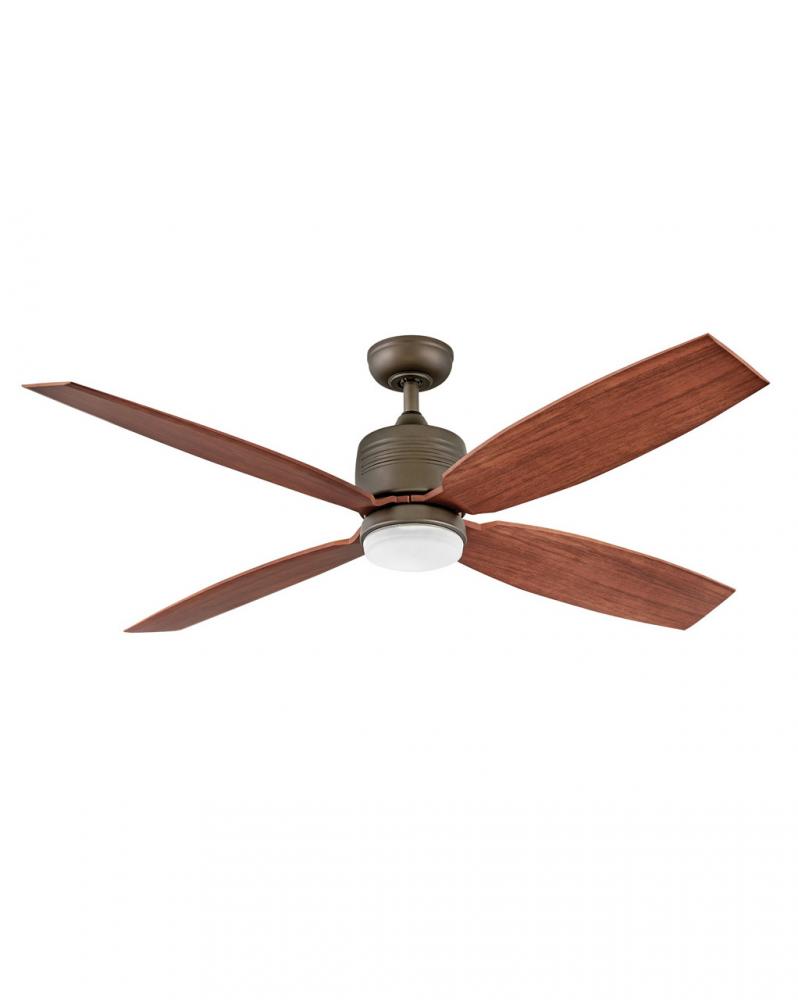

Simple, sleek and stunning, Module is the answer to any transitional space. Offered in Brushed Nickel, Graphite, Matte Black and Metallic Matte Bronze finish options, Module is the perfect solution for an easy and efficient upgrade. Equipped with integrated LED lighting and DC motor technology, Module delivers excellent energy efficiency. Module is so versatile; it can be used for both indoor and outdoor spaces. Blades are included with every fan.

Energy Information at High Speed

Airflow:

5059.0000 Cubic Feet per Minute

Electricity Rate:

29.4000 Watts (excluded lights)

Airflow Efficiency:

172.0000 Cubic Feet Per Minute Per Watt

Standard Information

Category:

Exterior

Fans

Subcategory:

Exterior Fans

Outdoor Fans

Finish:

Bronze

Style:

Transitional

Option:

Title 24

Wet Rated

LED

Prop 65

Refinement Options

Category:

FAN

Style:

Transitional

Family:

Module

Voltage:

120

Number Of Bulbs:

1 Bulbs

Air Flow CFM:

5059.0000

Air Flow Efficiency:

172.0000

Amperage:

0.4100

Blade Finish:

Metallic Matte Bronze

Blade Pitch:

13.5

Blade Span:

58

Blades Included:

4

YES

Bulb Dimmable:

Yes - CL Type Dimmer (SSL7A)

Canopy:

6" Dia.

Electricity Used:

29.4000

Introduction Date:

01-01-2020

Kelvin:

3000

Light Kit Included:

Yes

Lumens / Light Output:

1500

Material:

Steel

Motor Fan Speed:

6 Speed

Motor RPM:

144.0000

Motor Type:

DC

Ship Carton Height:

10.91

Ship Carton Length:

30.5

Ship Carton Width:

10.75

Ship Weight:

17.73

Vendor Ship Method:

Parcel

Warranty:

Fans - Motor - Res999999 - Com999999, Fans - Integrated LED components - Res1825 - Com1095, Fans - Blades, Controls, Switches, Capacitors, Hardware - Res365 - Com365, Indoor, Outdoor, Fans - Base Warranty - Res730 - Com730

Weight:

15.48

Wire Included:

1 X 76"

AirflowCFM Avg:

3597.0000

AirflowEfficiency Avg:

197.0000

AMPS Avg:

0.2300

Blade Material:

Composite

Blade Options Available:

No

Blades Reversible:

No

Brand:

HINKLEY FAN

Canopy Depth:

2.2500

Ceiling To Blade Height:

11.75

Control Type:

Wall Control - 6 Speed Reversing

Country of Origin:

China

CRI:

90

Dual Mount:

No

ElectricityUsed Avg:

18.00

Energy Cost Avg:

5

Energy Cost High:

8.0000

F B Included:

Fan Control included, 6 Spd wall

F B Mounting:

FAN: 4.5" Rod Included, FAN: 7ft from floor, FAN: Install Slope Ceiling

Fan Control Included:

Yes

Fan Control Part Number:

980014FWH-R

Incandescent Equivlancy:

1 x 100w

Install Sloped Ceiling:

Yes

Light Kit Adaptable:

No

Light Kit Included Removeable:

No

Motor Name:

DC-125S

MotorRPM Avg:

97.0000

Operating Frequency:

60

Optional Items:

980003FWH, 980015FAS-014, 932014FMM

Optional Light Kit Cover:

932014FMM

Optional Remote Control:

980003FWH

Optional Wifi Module Accessory:

980015FAS-014

Prop 65:

View

Prop 65 WARNING:

View

Receiver Included:

Yes

Reversing Control:

Yes

Safety Rating:

C-US Wet Rated

ETL

Single Power Switch:

Yes

Slope Degree:

18

Title 24:

Yes

Wet Rated:

Yes

WIFI Control:

YES
