Product Overview

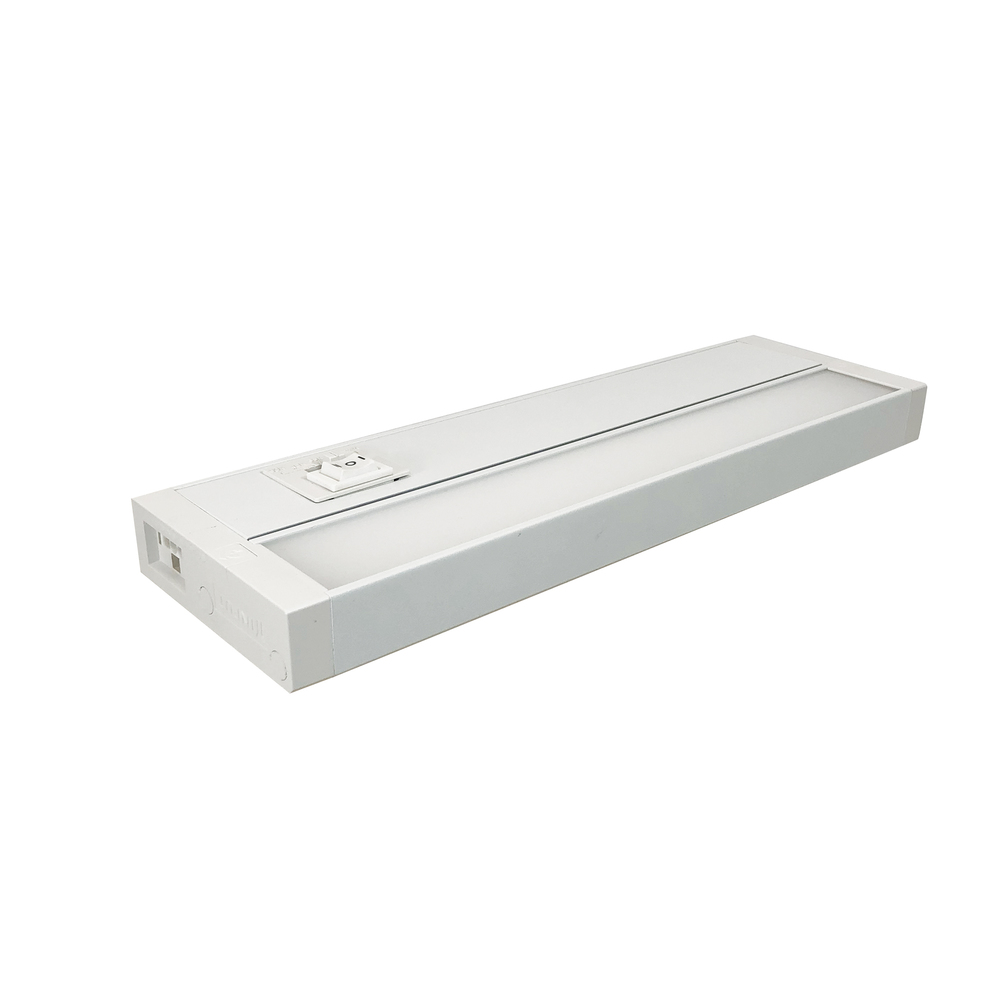

120V LED under cabinet luminaires include two switches to change the color temperature and On/Off switch. Each fixture includes five color temperature options and are linkable up to 400W. Luminaires produces an average of 475 lumens per foot. LEDUR uniform reflectance is excellent when used under cabinet over granite, polished stone or any reflective surface, additionally it is excellent in retail display lighting where diode image might distract from display merchandise.
Length: 22"
Input Voltage: 120V
Lumens / Wattage: 475lm per ft. / 11W
Color Temperature: Selectable CCT (27K/30K/35K/40K/50K)
Color Rendering Index: 90+ CRI
Dimming: Triac or ELV
Finish: White
Maximum Run Length: 400W
Included: Mounting Hardware, End-to-End Connector (NUA-803), and die-cast cable clamp

Standard Information

Category:

Undercabinet

Subcategory:

LED Undercabinet Lights

Finish:

White

Style:

Transitional

Option:

Title 24

Refinement Options

Category:

Accent / Undercabinet

Product Line:

LE67

Est. Shipping Wt.:

3

Length:

22.25

Lumens / Light Output:

Selectable Lumens (275lm or 475lm per ft.)

Ship Carton Height:

1.5

Ship Carton Length:

23.5

Ship Carton Width:

4

Weight:

1.35

CCT:

Selectable CCT (27K / 30K / 35K / 40K / 50K)

CEC Database:

Y

CEC Item Number:

NUDTW-8822/23345***

CEC Substitute Item:

NUDTW-8822/23345BZ

Contains Battery:

N

Country of Origin:

CHN

CRI:

90

DLC Listed:

No

Location Rating:

Damp Rated

Master Box H:

5

Master Box L:

24

Master Box Qty:

6

Master Box W:

10

Master Box Wt.:

10

Product Family:

LEDUR

Safety Listing:

cULus

Wattage:

11W

1.55
