6" Quartz Round LED Can-less Downlight with Selectable Lumens & CCT, White Finish

Part Number: 1J401D / Vendor ID #: 104

6" Quartz Round LED Can-less Downlight with Selectable Lumens & CCT, White Finish

$91.90

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 3068 items available.

Dimensions

Height: 4.63"

Width: 7.50"

Info & Guides

Product Overview

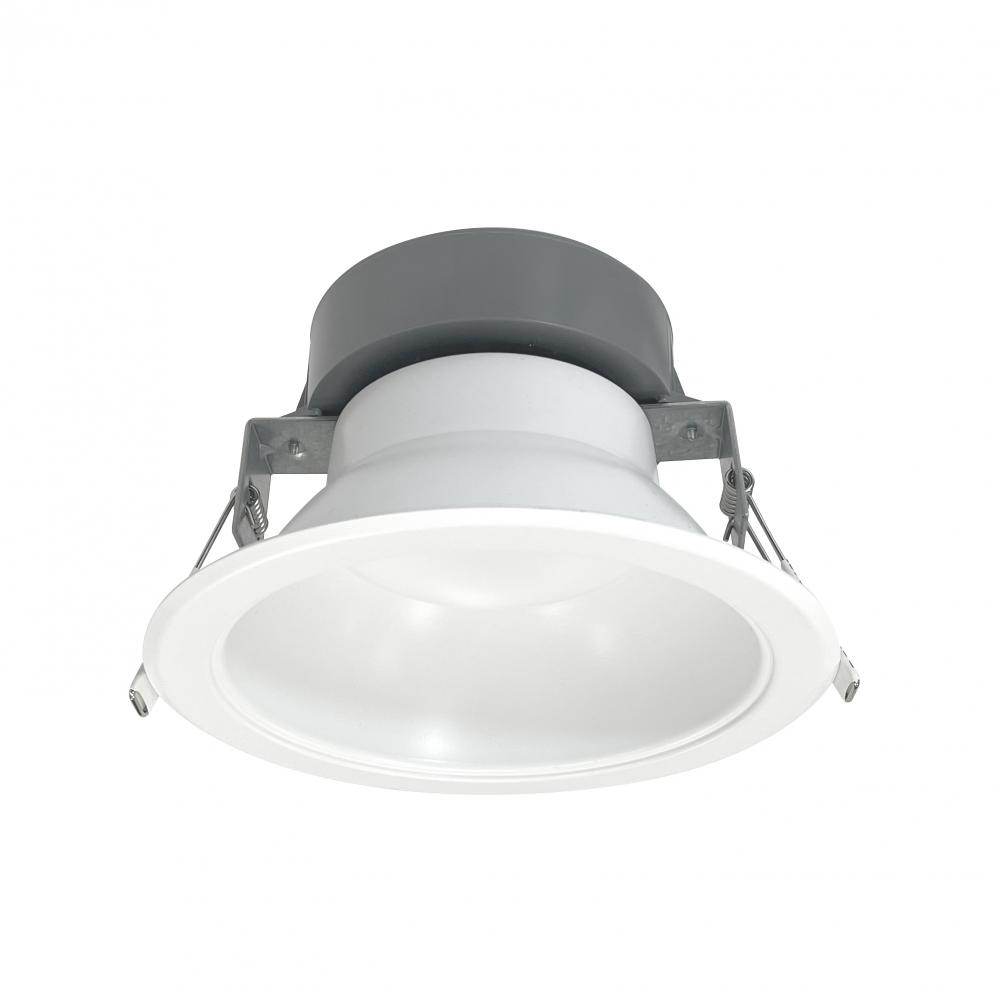

6" Quartz luminaires are architectural and commercial-grade LED high-lumen downlights. Each luminaire includes two tunable switches: Selectable Lumens allows the end user to determine the wattage input, and Selectable CCT allows changing the color temperature appearance. Downlights include two tension steel spring clips, which allow the luminaires to be installed without any frame-in or housing for easy installation.
Rating: IC
Input Voltage: 120-277VAC

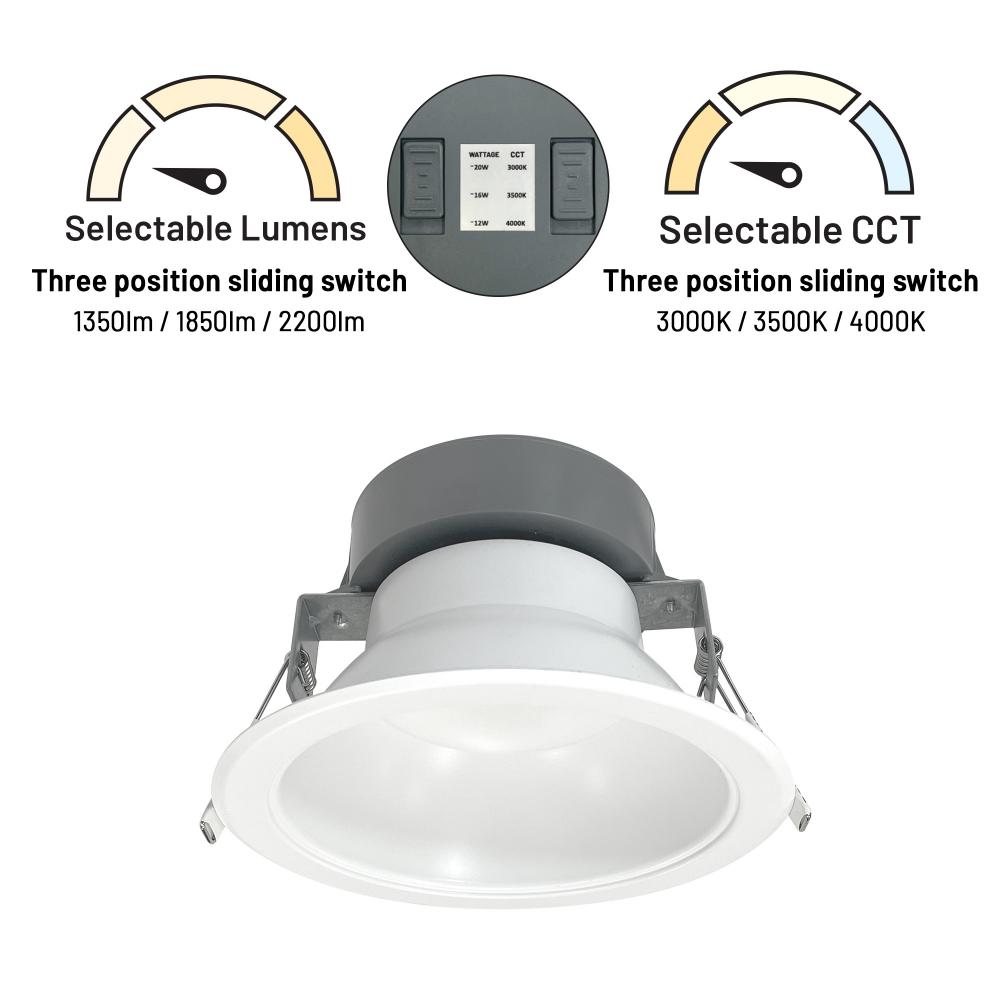

Lumens / Wattage: Selectable Lumens (1350lm / 12W; 1850lm / 16W; 2200lm / 20W)
Color Temperature: Selectable CCT (3000K / 3500K / 4000K)
Dimming: 0-10V
Finish: White
Accessories: New construction frame-in (NQZ2-6R-F) or Reflector inserts (NQZ-61REFL)
Emergency: Remote emergency battery ordered separately (NEPK-20LEDUNV)
Listing: cETLus Listed for Wet Locations

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Option:

Title 24

Refinement Options

Category:

Recessed

Product Line:

LE80

Est. Shipping Wt.:

Length:

7.5

Lumens / Light Output:

Selectable Lumens (1350lm / 1850lm / 2200lm)

Ship Carton Height:

5.25

Ship Carton Length:

9.375

Ship Carton Width:

9.5

Weight:

1.65

CCT:

Selectable CCT (3000K / 3500K / 4000K)

CEC Database:

CEC Item Number:

NQZ2-61TWTW-***

CEC Substitute Item:

NQZ2-66TWTW-MPW

Contains Battery:

Country of Origin:

CHN

CRI:

DLC Listed:

Location Rating:

Wet

Master Box H:

Master Box L:

Master Box Qty:

Master Box W:

Master Box Wt.:

Product Family:

Quartz

Safety Listing:

cETLus

Wattage:

Selectable Wattage (12W / 16W / 20W)

2.15
